| Spare Parts |   |

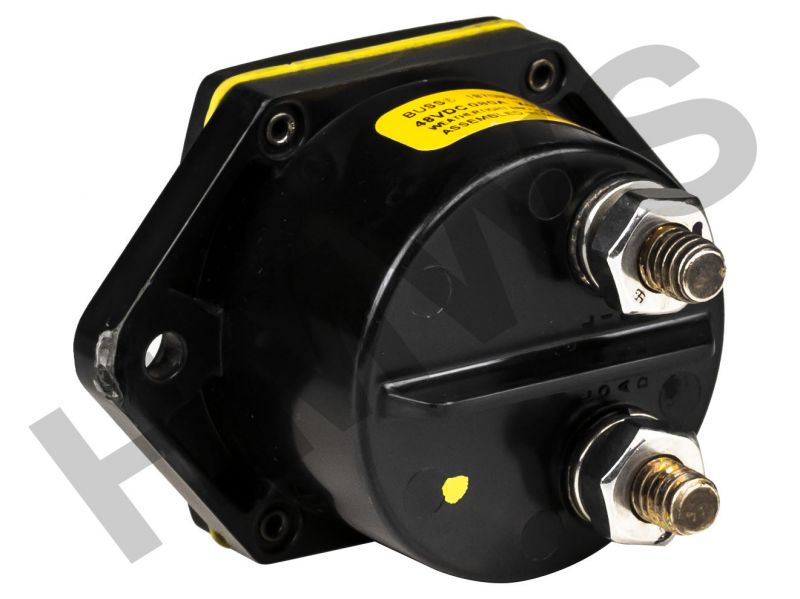

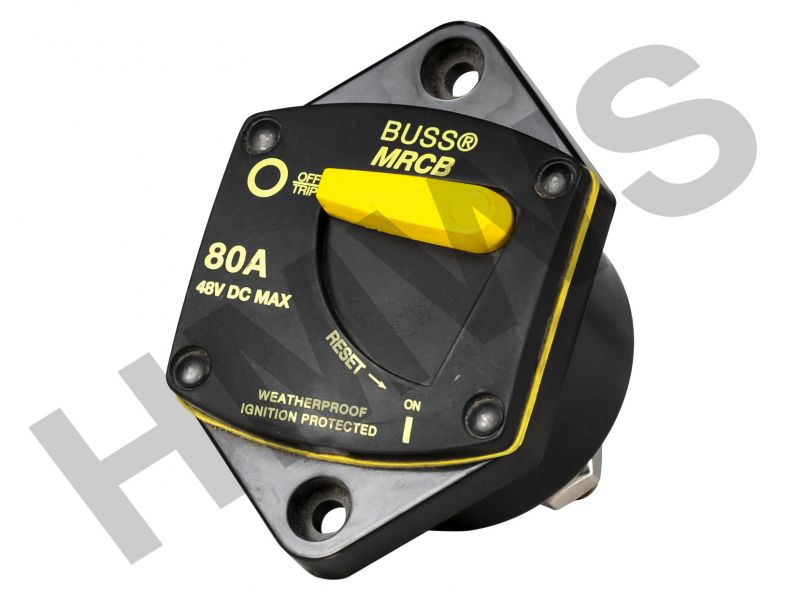

| SWE-187080P-03-1 | | ORIGINAL MANUFACTURER PART NUMBER |
| Specification | Type: Manual Reset
Material: PBT
Colour: Black
Weight: 200 g
Amperage Rating: 80 A
Voltage: 48 VDC
Applications Typically used in DC power systems in marine applications, truck and bus systems, RV systems, add-on protection for accessories, lift gates, etc. This unit is external ignition protected and weatherproof.
Interrupt Rating Main Breaker Protection Interrupt Rating (5,000A @ 14VDC, 3,000A @ 28VDC and 1,500A @ 48VDC).
Operating Temperature Rating -40 deg C to 85 deg C
Storage Temperature Rating -40 deg C to 125 deg C
Marking Standard marking includes amp/volt ratings. Custom markings also available
Termination 5/16-18 threaded studs
Torque Rating 75 lbs/inch or 8.5N (max.)
Mounting Torque Rating Panel or surface-mount options; 50 lbs/inch or 5.6 N (max.)
Ingress Protection Rating IP66
Features / Options A manual reset circuit breaker with On-Off switch capability
Compliances ABYC E-11; CE; SAE J1171 (ignition protected) | | Type | Manual Reset | |
Material | PBT | |
Colour | Black | |
Weight | 200 g | |
Amperage Rating | 80 A | |
Voltage | 48 VDC |
|
| |
|
