| Spare Parts |   |

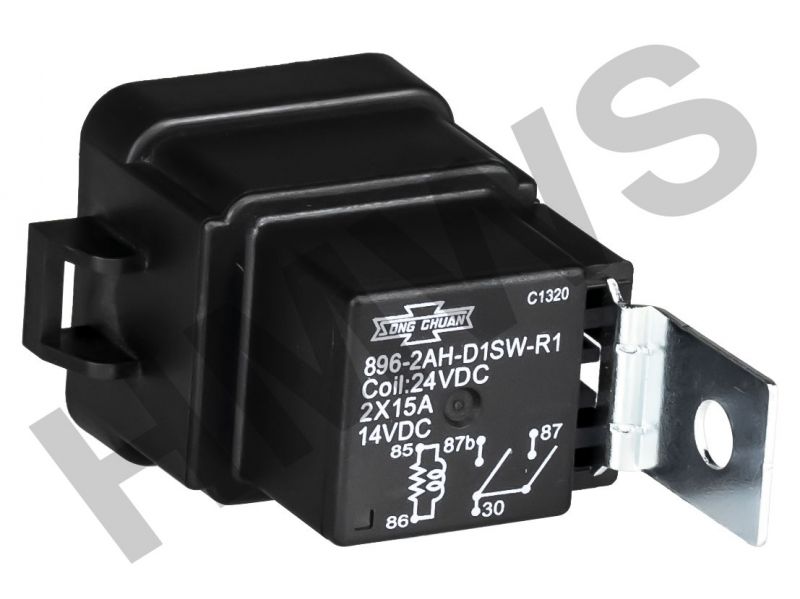

| 896-2AH-D1SW-R1-24VDC | | ORIGINAL MANUFACTURER PART NUMBER |
| Specification | Type: Standard
Colour: Black
Weight: 50 g
Contact Form: 2A (DPNO)
Contact Rating: 2 x 15A 14VDC
Rated Current: 75 mA
Max. Continuous Voltage: 133 %
Power Consumption of Rated Voltage: 1.8 W
Contact Rated Voltage Drop: 50 mV at 10 A
Temperature Range: -40 °C to +125 °C
Coil Voltage: 24 VDC
Coil Protection: Diode
Contact Material Silver Tin Oxide
Coil Resistance 320 Ohms
Pick up Voltage 65 %
Drop out Voltage 10 %
Series 896
Enclosure Style Dust cover with weather proof and steel bracket | | Type | Standard | |
Colour | Black | |
Weight | 50 g | |
Contact Form | 2A (DPNO) | |
Contact Rating | 2 x 15A 14VDC | |
Rated Current | 75 mA | |
Max. Continuous Voltage | 133 % | |
Power Consumption of Rated Voltage | 1.8 W | |
Contact Rated Voltage Drop | 50 mV at 10 A | |
Temperature Range | -40 °C to +125 °C | |
Coil Voltage | 24 VDC | |
Coil Protection | Diode |
|
| |
|
